Module Specification Description

# 520nm Laser Module Specification

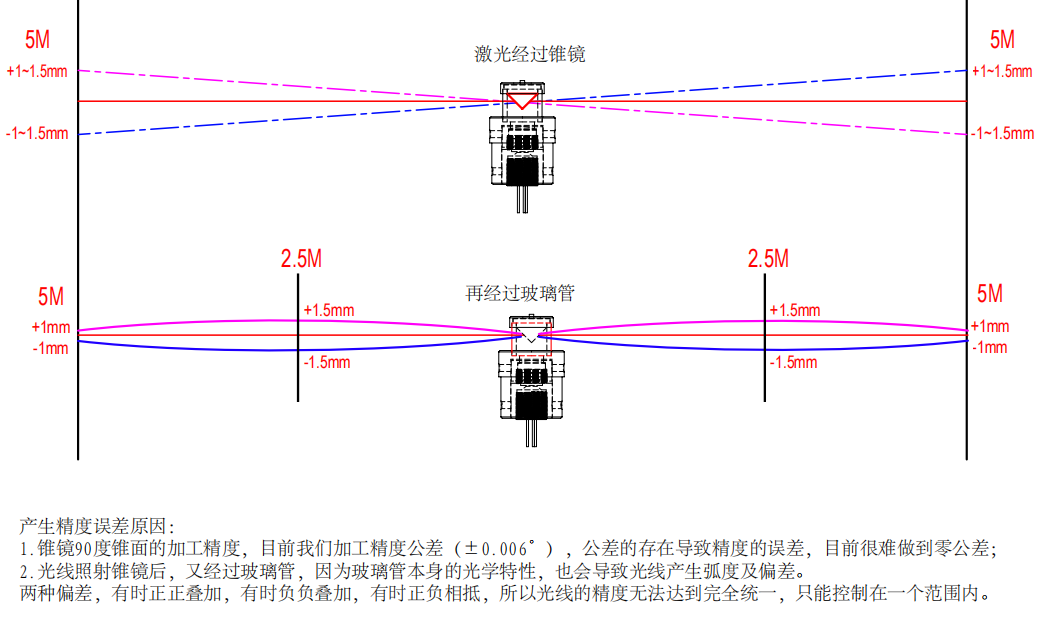

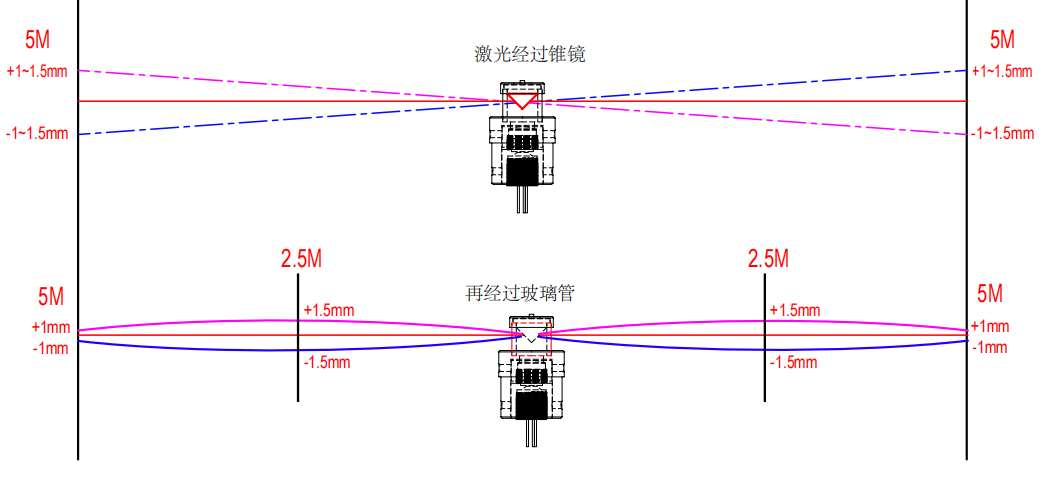

1. Machining accuracy of the 90° conical mirror: current machining tolerance is (±0.006°). Tolerance leads to accuracy deviation, and zero‑tolerance manufacturing is practically unachievable at present.

2. After passing through the conical mirror, the light beam travels through the glass tube. The inherent optical properties of the glass tube will cause beam radian and deflection.

These two deviations may add positively, add negatively, or counteract each other. Therefore, perfect uniform beam accuracy cannot be achieved and can only be controlled within a certain range.

## Model: PL520

- Wavelength: 520nm±10nm

- Output Power: 1‑10mW‑30mW (adjustable per customer requirements)

- Operating Current: ≤80mA‑120mA @6V

- Supply Voltage: DC 3.0‑6V

- Operating Temperature: -10‑50°C

- Output Spectrum: Visible laser

- Emission Mode: Pulsed emission

- Operating Medium: Semiconductor laser

- Beam Pattern: Line

- Fan Angle: ＞120°

- Line Width: ≤2.5mm at 7‑meter distance

- Dimension: Φ13×Φ16×28mm (customizable)

### Structural Features

Imported laser diode, metal housing, aspherical glass lens, constant‑power PCB.

### Product Features

Adopts original imported laser diode as core component. State‑of‑the‑art manufacturing equipment and processes for telecom lasers are applied to industrial laser production. The resulting high‑performance industrial laser offers unique advantages over comparable products.

- Intelligent feedback control with built‑in boost circuit

- High‑transmittance optical system

- Low power consumption, high‑efficiency optical power output

- Stable performance, good consistency and long service life
